Shading
Summary:

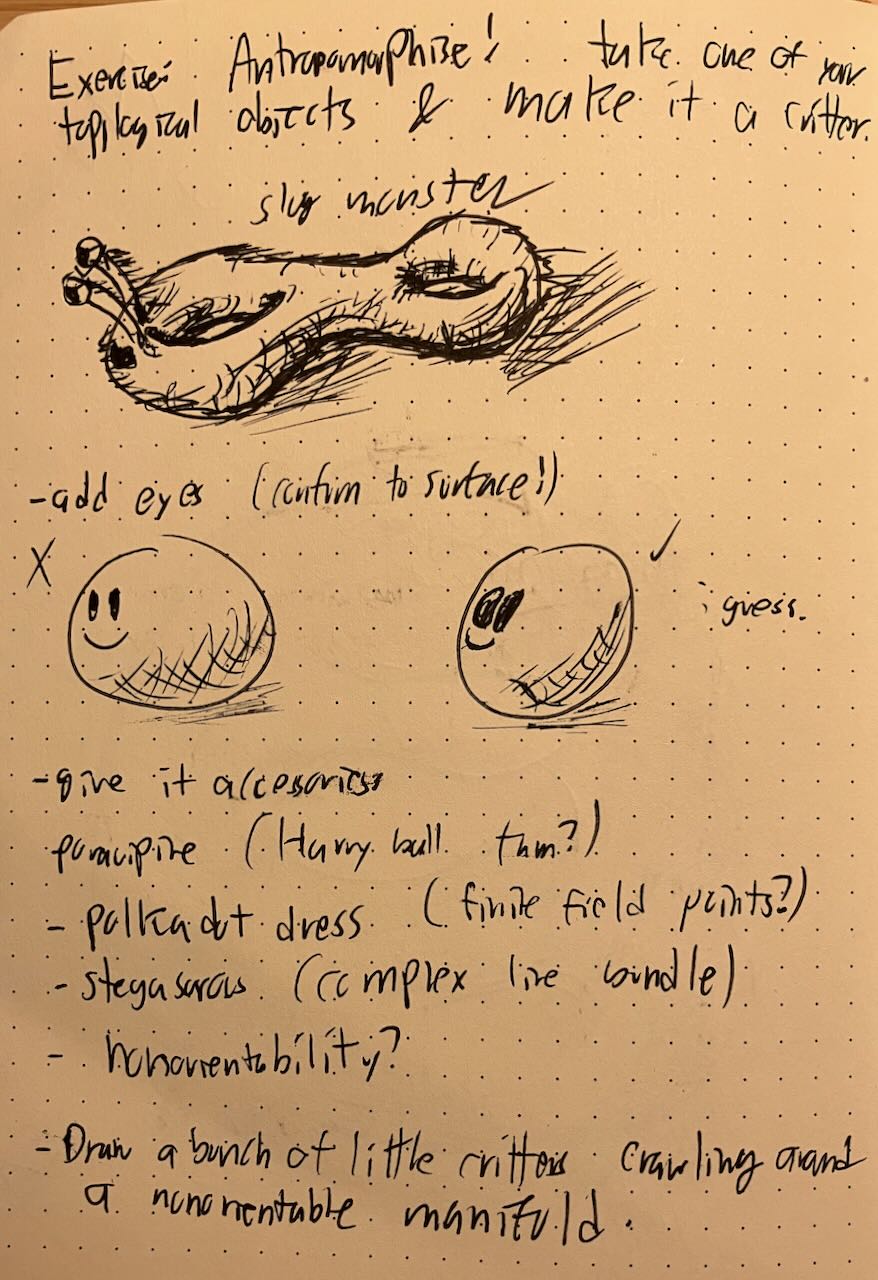

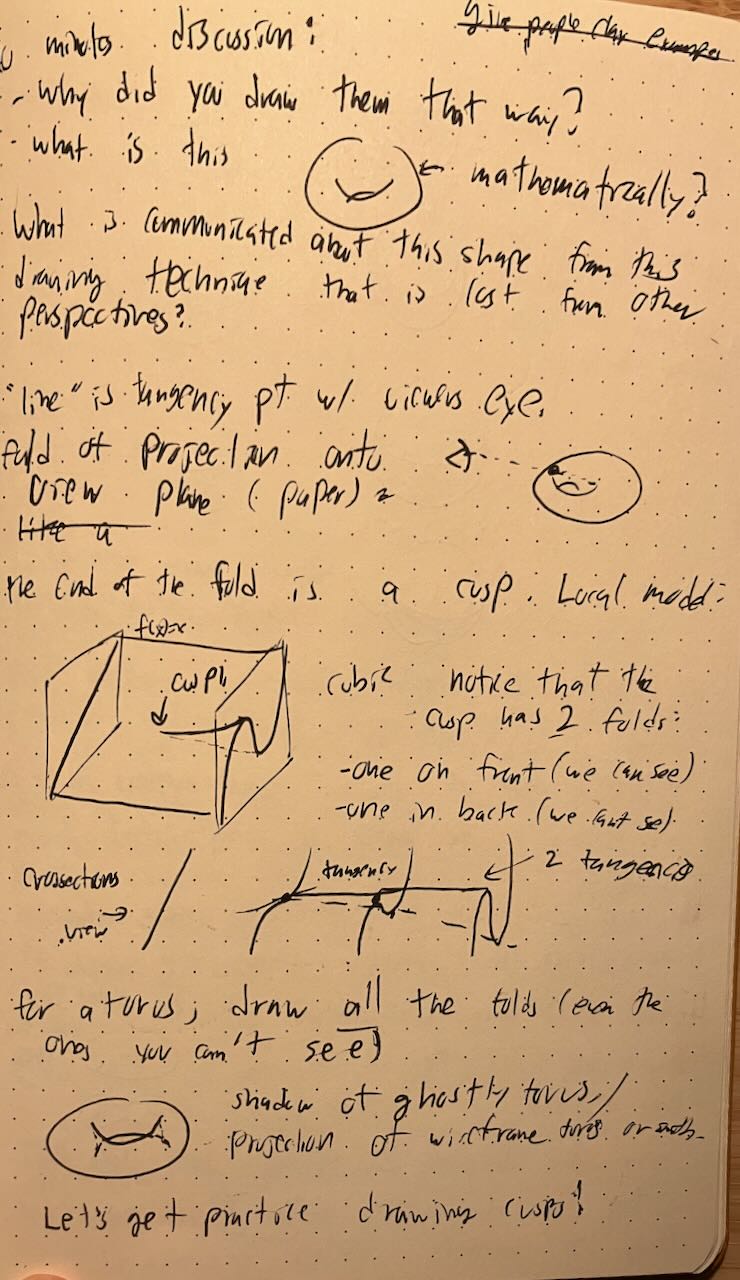

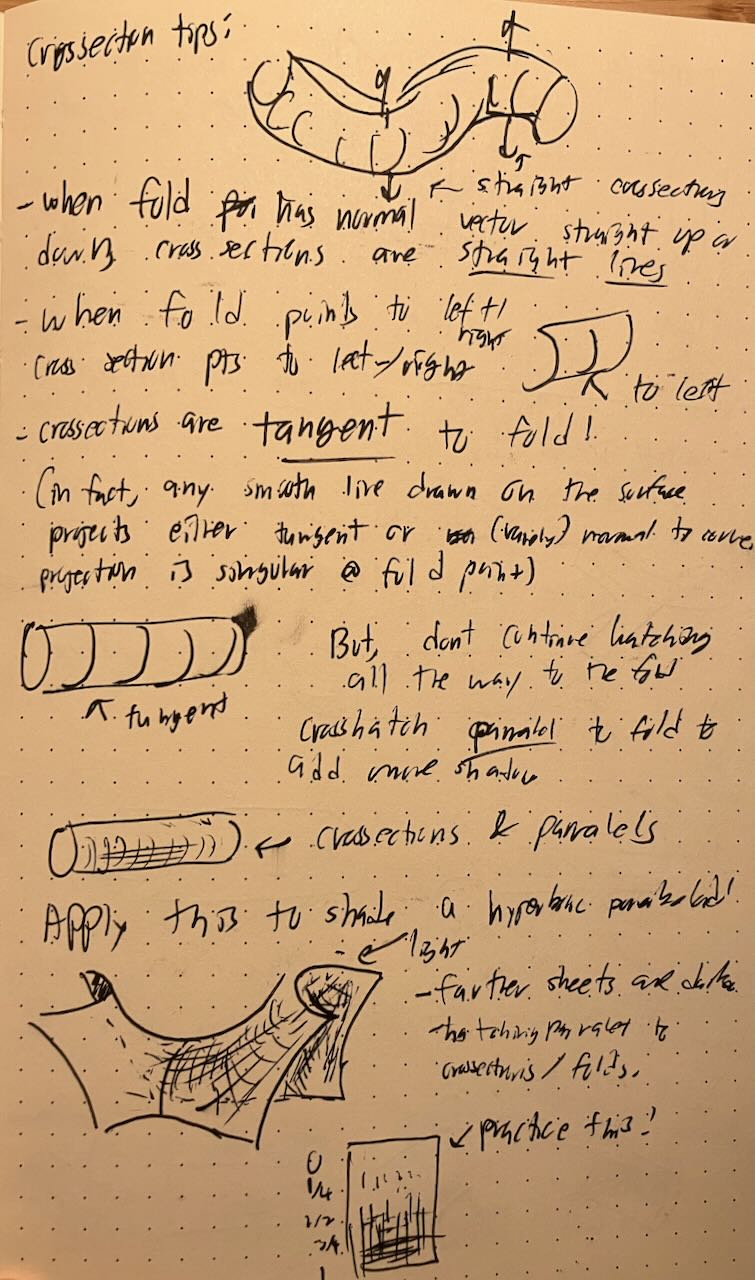

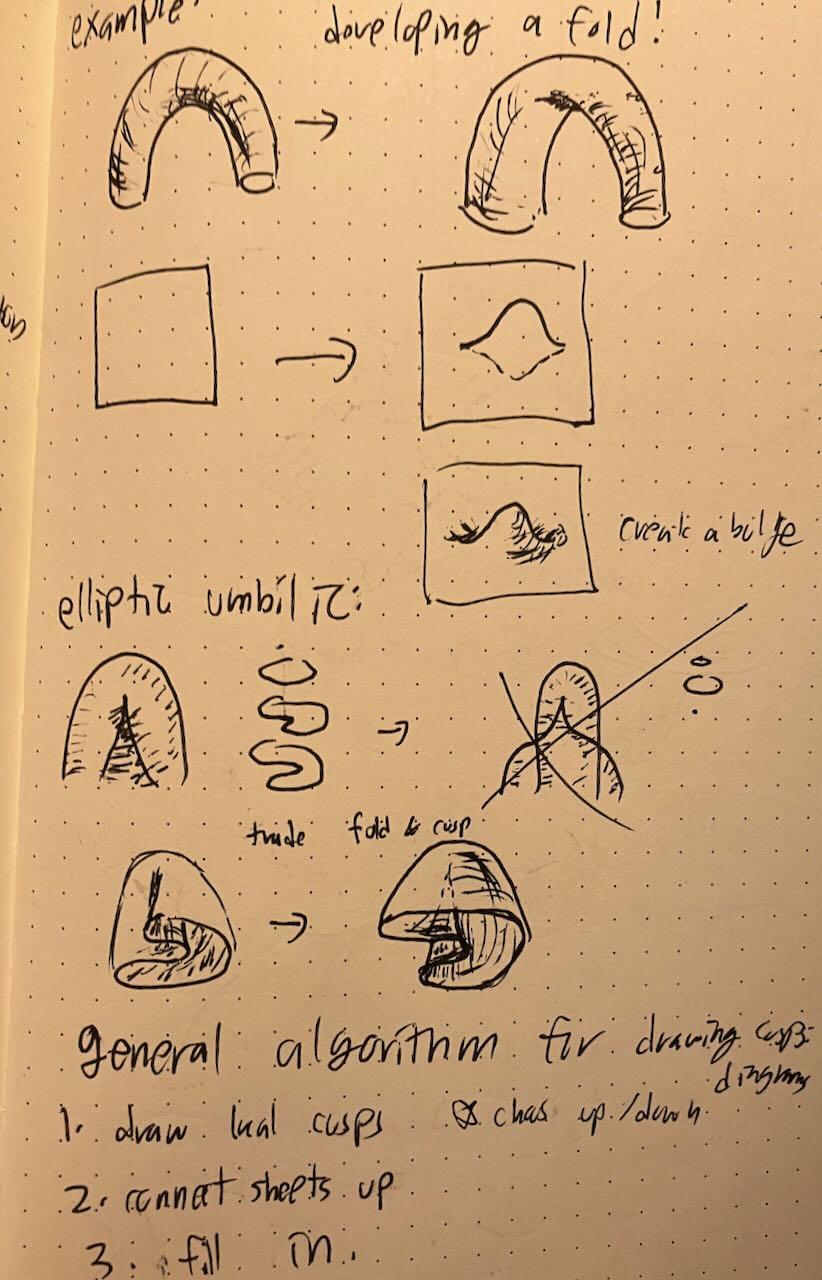

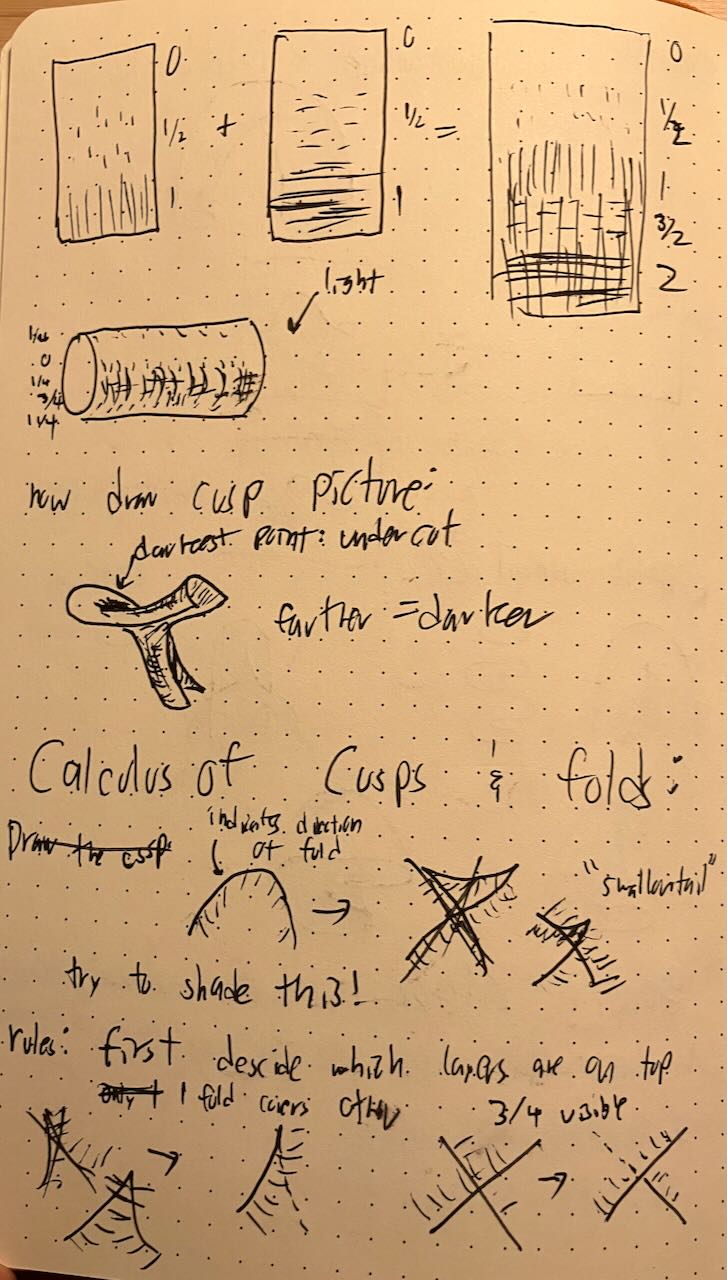

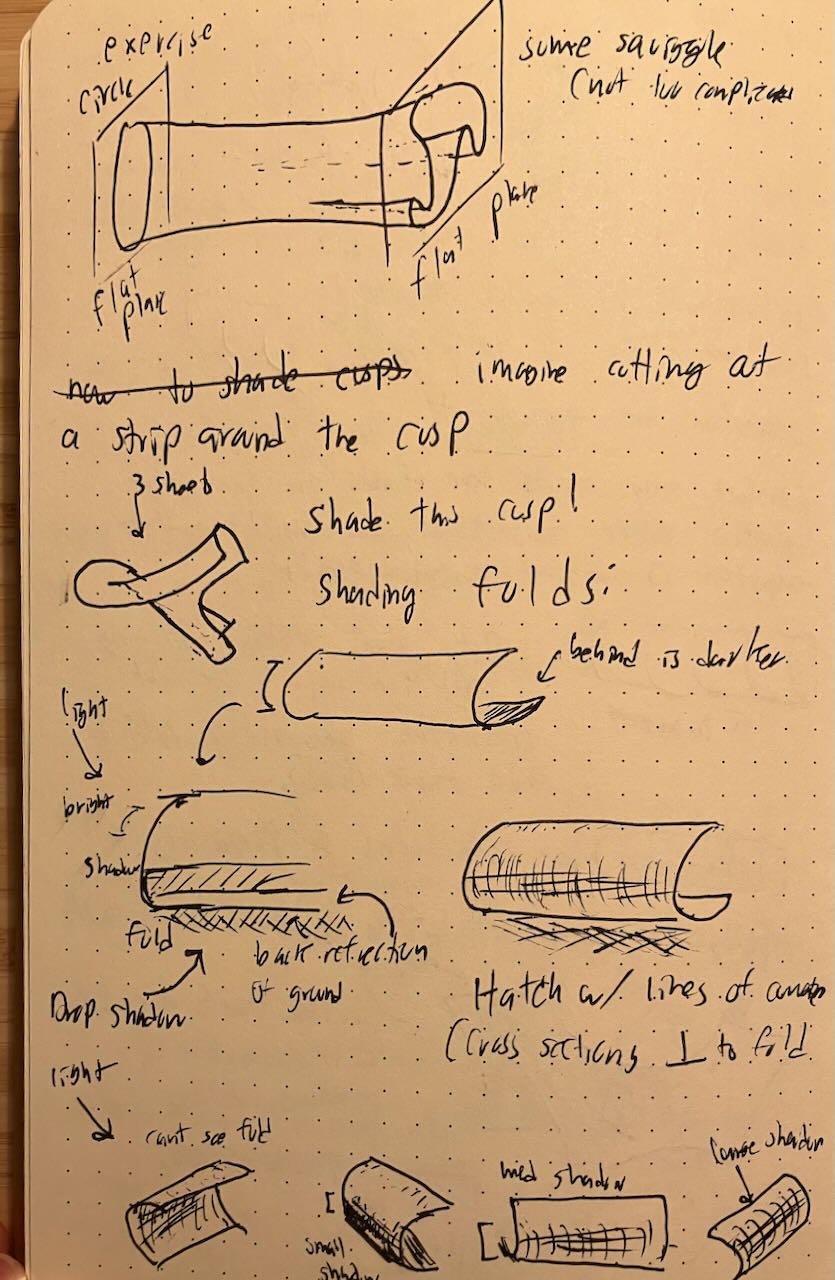

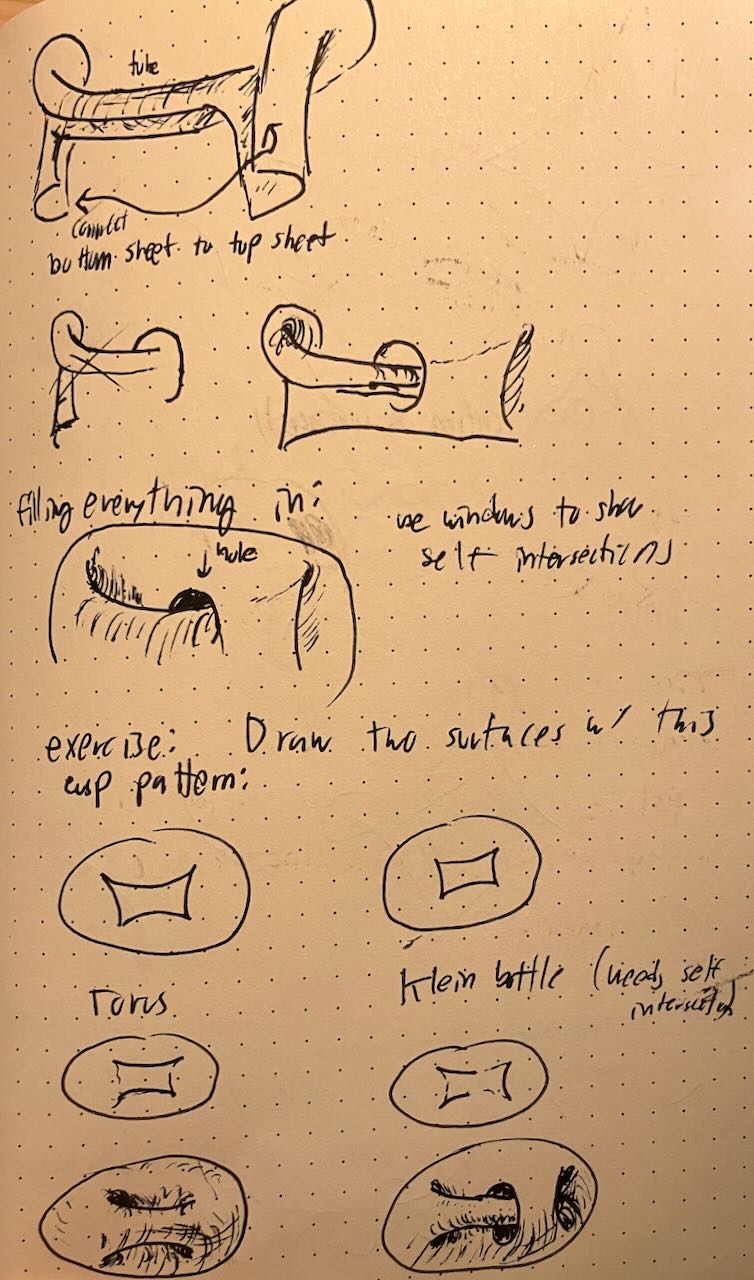

For the number theory conference, I ran a workshop on mathematical drawing. I introduced cusps and folds, and taught people about crosshatching. Afterwards, we drew topological critters.
Part of Drawing Club at the IHP trimester in illustrating mathematics.
Genus 2 surfaces
What does a genus 2 surface look like? I each participant submit one. There are many of the standard double tori, but also many different shapes. There are, geometrically, many different genus 2 surfaces.
I didn’t have time to make a nice worksheet this week. But, here’s my notes about what I was planning on doing. Maybe they’re even readable

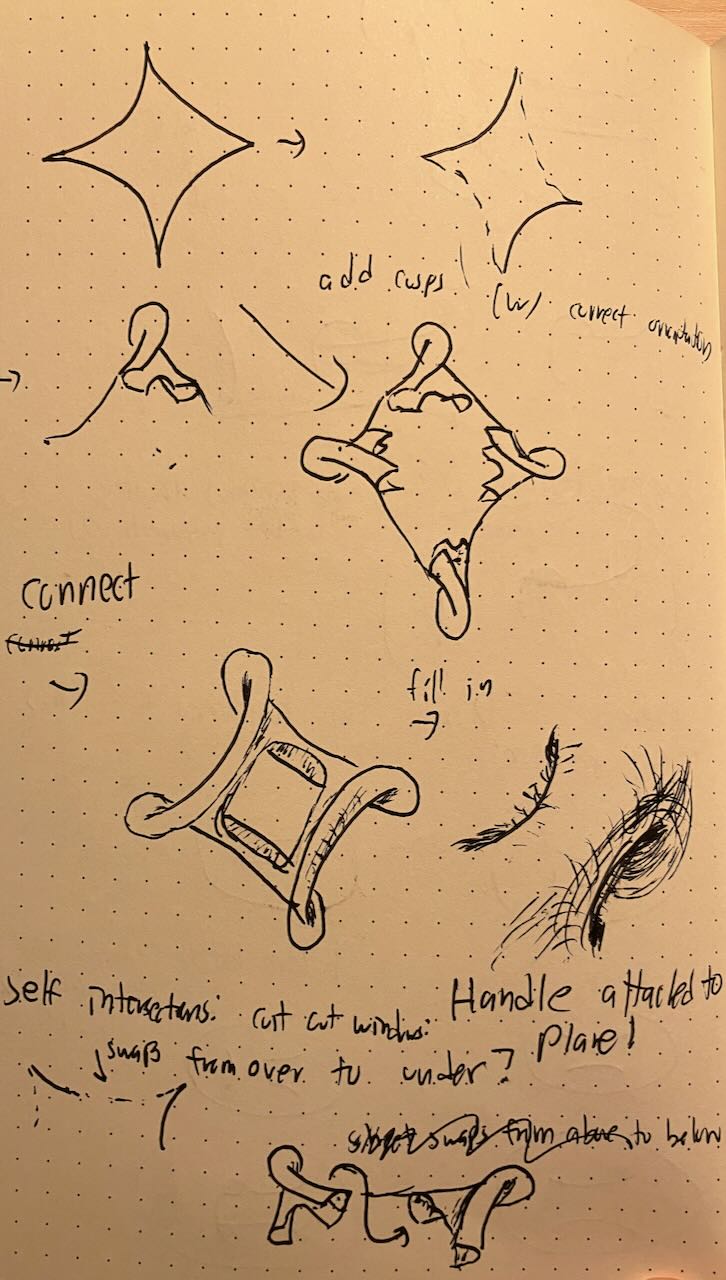

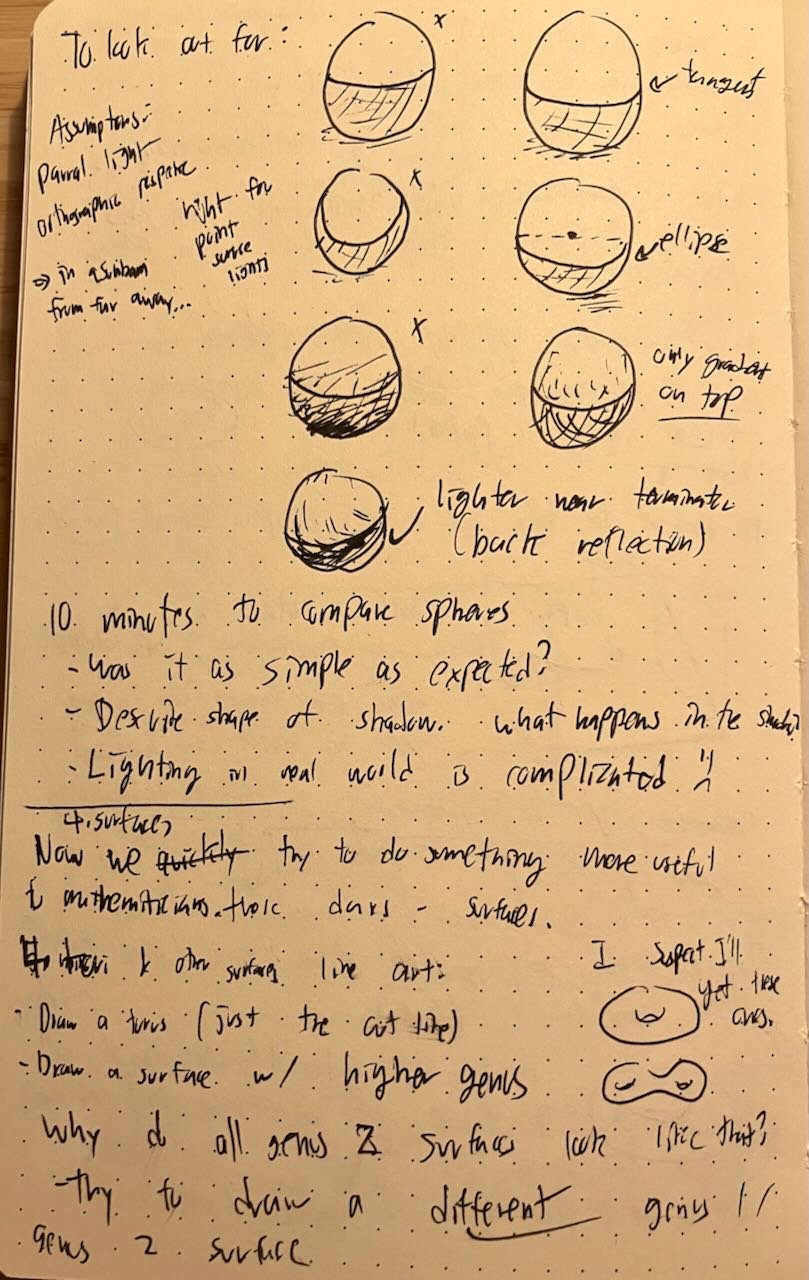

Page 1
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7
Page 8
Page 9
Page 10
